Ceramic Dredging Hose

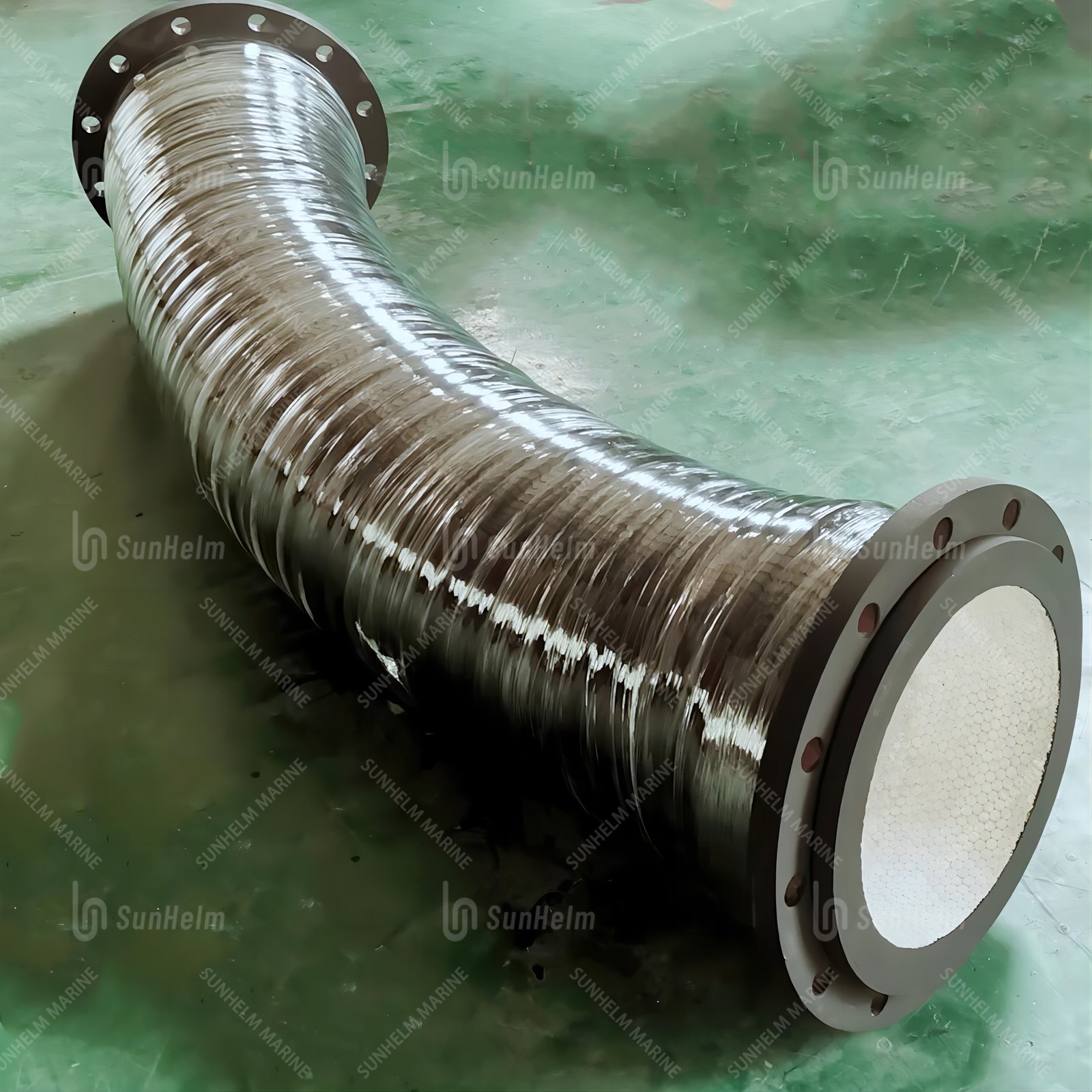

Wearing lining with ceramic pieces of various patterns, round, square, and hexagonal, ceramic rubber hose has a better wear-resistant. Shown is our ceramic suction hose. It includes floating hose, discharge hose, suction hose, and expansion joint. Ceramic rubber hose is suitable for dredging slurry and sand. It’s convenient to install and flexible to use.
- Ceramic rubber hose is suitable for dredging slurry and sand.
- For floating hose pipelines in severe slurry applications.
Ceramic Hose Feature
The hoses have the ring of high abrasion resistance.
Inner lining of excellent abrasion resistant performance and bending resistance.
It’s available in diameters up to 1300mm and in various lengths and pressure ranges.
It can be equipped with rubber flanges or steel flanges on both ends of hoses.
The suitable working temperature: from -30℃ to +90℃ .
Ceramic Dredging Hose Construction
I.D.(mm) | OD(mm) | W.P.(bar) | B.P.(bar) | Max. V | B.R.(mm) | Weight | Length |
40 | 73±2 | 10.0 | 30 | 0.9 | 150 | 3.97 | 1 |
50 | 83±2 | 10.0 | 30 | 0.9 | 200 | 4.8 | 1 |
65 | 98±2 | 10.0 | 30 | 0.9 | 300 | 5.8 | 1 |
80 | 113±2 | 10.0 | 30 | 0.9 | 350 | 6.7 | 1 |
100 | 113±2 | 10.0 | 30 | 0.9 | 400 | 8.2 | 1 |
125 | 158±2 | 10.0 | 30 | 0.9 | 600 | 10.1 | 1 |
150 | 183±2 | 10.0 | 30 | 0.9 | 700 | 11.9 | 1 |
200 | 234.5±2 | 10.0 | 30 | 0.9 | 1300 | 16.7 | 1 |
250 | 285.5±2 | 10.0 | 30 | 0.9 | 1750 | 22.62 | 1 |
300 | 340.5±2 | 10.0 | 30 | 0.9 | 2400 | 31.5 | 1 |
350 | 391±3 | 10.0 | 30 | 0.9 | 3150 | 39.05 | 1 |
400 | 441±3 | 10.0 | 30 | 0.9 | 4000 | 43.6 | 1 |
NOTE: Upon availability. Tolerance on length: ± 1 % (ISO 1307 Standard). |
| ||||||
International Leading Ceramic Dredging Hose Manufacturer
SunHelm Marine specializes in the production of engineering products for dredger dredging pipelines. Sunhelm Marine has more than 20 years of production experience and has built large-scale production workshops with an indoor storage area of 12,000㎡. SunHelm Marine is a leading manufacturer of dredging pipeline products.
SunHelm Marine has the ability to produce dredging mud suction and discharge hoses with a maximum diameter of 1100mm and various types of special steel pipe floats for dredging. SunHelm Marine relies on various advanced testing facilities to accurately control product quality.
Pipe floats Overview
Pipe floats are the flotation of pipes, hoses, and cables for dredging, mining, and marine applications.
They are always used with HDPE pipes, steel pipes, and rubber hoses to make the pipelines can work on the water. Besides, The pipe floats are an easy-to-install solution, which allows pipes to bend, while maintaining low resistance to waves, wind, and current.
