Armored Dredging Hose
Armored hoses are used in dredging and mining projects around the world and are particularly suited to the safe transportation of mineral ores and slurries which may have sharp interfaces, high volume capacity, heavy specific gravity and high impact loads, such as diamond ore. Integral square steel rings in the armored hoses ensure high dimensional stability and resistance.
- Armoured Hose are used for dredging sharp materials which have bigger volume, heavy specific materials like coarse sand, coral reef or weathered rock
Armored Hose Feature
The hoses have the ring of high abrasion resistance.
Inner lining of excellent abrasion resistant performance and bending resistance.
It’s available in diameters up to 1300mm and in various lengths and pressure ranges.
It can be equipped with rubber flanges or steel flanges on both ends of hoses.
The suitable working temperature: from -30℃ to +90℃ .

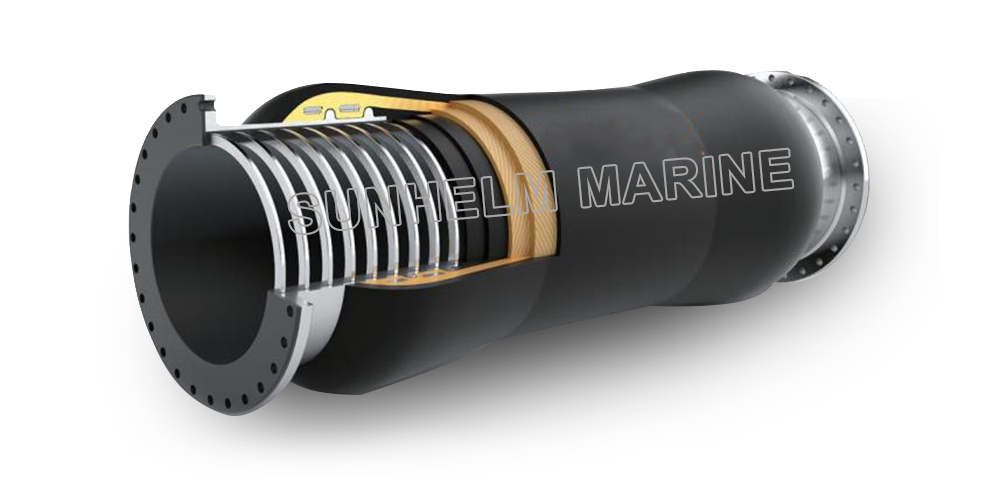

Armored Dredging Hose Construction
size(inch) | I.D.(mm) | W.P.(bar) | Length(m) |
8 | 200 | 10~35 | 1~11.8 |
10 | 250 | 10~35 | 1~11.8 |
12 | 300 | 10~35 | 1~11.8 |
16 | 400 | 10~35 | 1~11.8 |
20 | 500 | 10~35 | 1~11.8 |
24 | 600 | 10~35 | 1~11.8 |
26 | 650 | 10~35 | 1~11.8 |
30 | 750 | 10~35 | 1~11.8 |
32 | 800 | 10~35 | 1~11.8 |
34 | 850 | 10~35 | 1~11.8 |
Note: ID900mm & 1200mm, custom parameters are available. | |||
International Leading Armored Dredging Hose Manufacturer
SunHelm Marine specializes in the production of engineering products for dredger dredging pipelines. Sunhelm Marine has more than 20 years of production experience and has built large-scale production workshops with an indoor storage area of 12,000㎡. SunHelm Marine is a leading manufacturer of dredging pipeline products.
SunHelm Marine has the ability to produce dredging mud suction and discharge hoses with a maximum diameter of 1100mm and various types of special steel pipe floats for dredging. SunHelm Marine relies on various advanced testing facilities to accurately control product quality.
Pipe floats Overview
Pipe floats are the flotation of pipes, hoses, and cables for dredging, mining, and marine applications.
They are always used with HDPE pipes, steel pipes, and rubber hoses to make the pipelines can work on the water. Besides, The pipe floats are an easy-to-install solution, which allows pipes to bend, while maintaining low resistance to waves, wind, and current.
Our Products
With 20-year experience, SunHelm Marine Co., Ltd is a professional company producing dredging equipment in China. Our main products are dredge rubber hoses and dredge pipe. We produce different types and sizes of dredging pipelines to meet clients’ needs. Our dredging products sell well all over the world. Our expertise, excellent quality and service, flexibility, and competitive price can satisfy all our clients.
